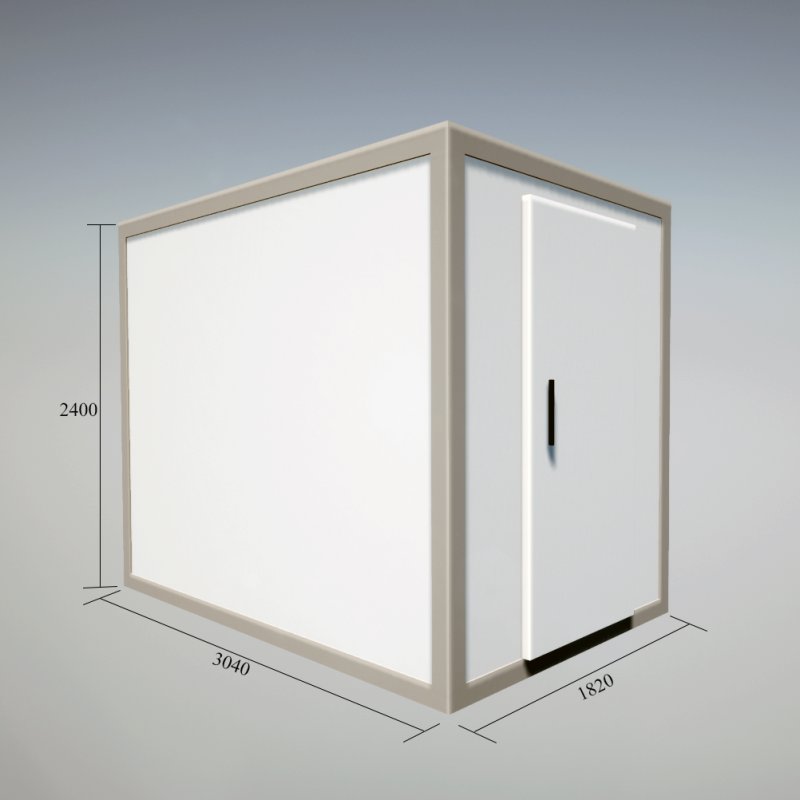

CHILLER 3040 x 1820 x 2400

CHILLER 3040 x 1820 x 2400 | Sheffield Africa Kenya

Temperature : +2 to +8 Deg.C

Total Surface Area(sq.m) : 28.8608

Total Volume (Cubic.m) : 13.27872

Running meters : 9.72

Item No : null

Model No : SHEFFIELDCR2

Brand :

Category : CHILLER ROOMS
  • Superior Insulation
  • Temperature Precision
  • Energy Efficiency
  • Quick Installation
  • Customizable Spaces
  • Durability and Longevity
  • Hygiene and Maintenance
  • Panel Specifications - Polyurethane Foam (PUF) Wall and roof 80MM Thick. The cladding material is Pre-painted Galvanized Iron (PPGI), Injected Density 42 Kg/m3
  • Floor Type - Epoxy Floor Type with 0.3 mm thick layer
  • Condensing Unit - AIR COOLED SLIM-ICM09AS, Cooling Capacity- 9120 BTU/Hr (2.67 kW) comes with R404a Refrigerant
  • Evaporator - Ceiling Mounted Evaporator, Capacity - 5971 BTU/Hr (2 kW) - Body Size - 30"" x 13"" x 16"" - CMH / Throw- 1560/9
  • Control Panel - Standard Control Panel equipped with Microprocessor based controller cum indicator along with required electrical/electronic components
  • Insulated Door - Swing Door Type, 80 mm thick Polyurethane Foam panels
  • Electrical materials - Refrigeration and Electrical Switch Gear, Electrical connections and materials
  • Interconnecting Material - Installation, testing, and commissioning, consumables and steel supports - U-channels, PVC internal Angle Lines (75 X 75 MM), PPGI Flashing (50 X 150 MM)
