CHILLER 4260 x 1820 x 2400 | Sheffield Africa Kenya
Temperature : +2 to +8 Deg.C
Total Surface Area(sq.m) : 36.9372
Total Volume (Cubic.m) : 18.60768
Running meters : 12.16
Item No : null
Model No : SHEFFIELDCR4
Brand :

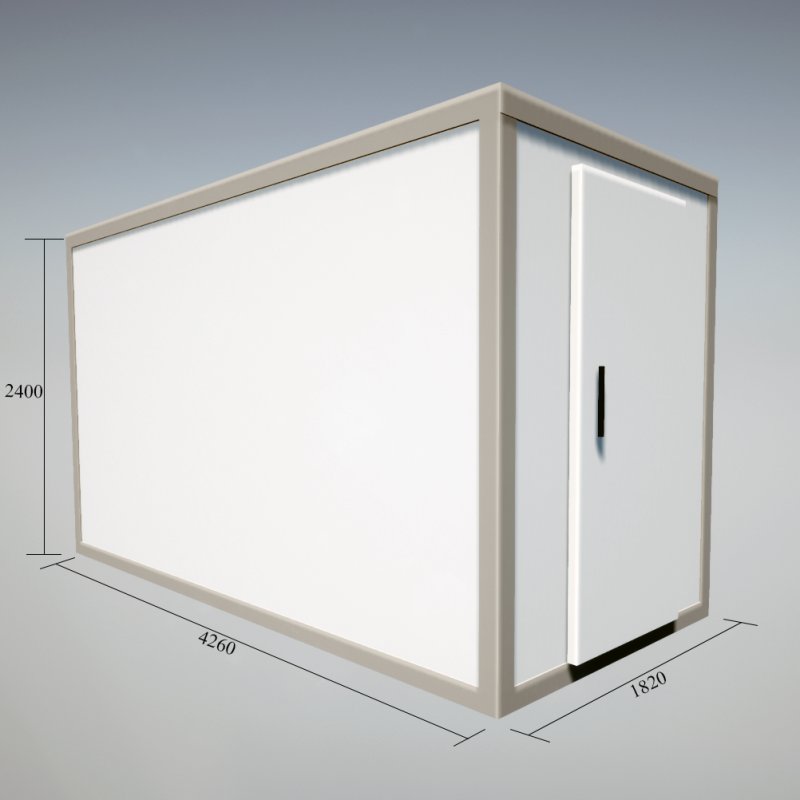

Category : CHILLER ROOMSThis chiller room measures 4.26 by 1.82 metres and stands 2.4 metres high, giving 18.61 cubic metres of storage held between +2 and +8 °C. It suits hotels, supermarkets and food processors storing fresh produce, dairy and prepared food.
Walls and roof are 80 mm polyurethane foam panels clad in pre-painted galvanised iron, over a seamless epoxy floor. A microprocessor control panel holds and displays the set temperature. Sheffield supplies the room, installs it, tests it and commissions it.
| Panel Specifications | Polyurethane Foam (PUF) Wall and roof 80MM Thick. The cladding material is Pre-painted Galvanized Iron (PPGI), Injected Density 42 Kg/m3 |
| Floor Type | Epoxy Floor Type with 0.3 mm thick layer |
| Condensing Unit | AIR COOLED SLIM-ICM12AS, Cooling Capacity- 12105 BTU/Hr (3.54 kW) comes with R404a Refrigerant |
| Evaporator | Ceiling Mounted Evaporator, Capacity - 11942 BTU/Hr (4 kW) - Body Size - 43" x 13" x 16" - CMH / Throw- 3120/9 |
| Control Panel | Standard Control Panel equipped with Microprocessor based controller cum indicator along with required electrical/electronic components |
| Insulated Door | Swing Door Type, 80 mm thick Polyurethane Foam panels |
| Electrical materials | Refrigeration and Electrical Switch Gear, Electrical connections and materials |
| Interconnecting Material | Installation, testing, and commissioning, consumables and steel supports - U-channels, PVC internal Angle Lines (75 X 75 MM), PPGI Flashing (50 X 150 MM) |
