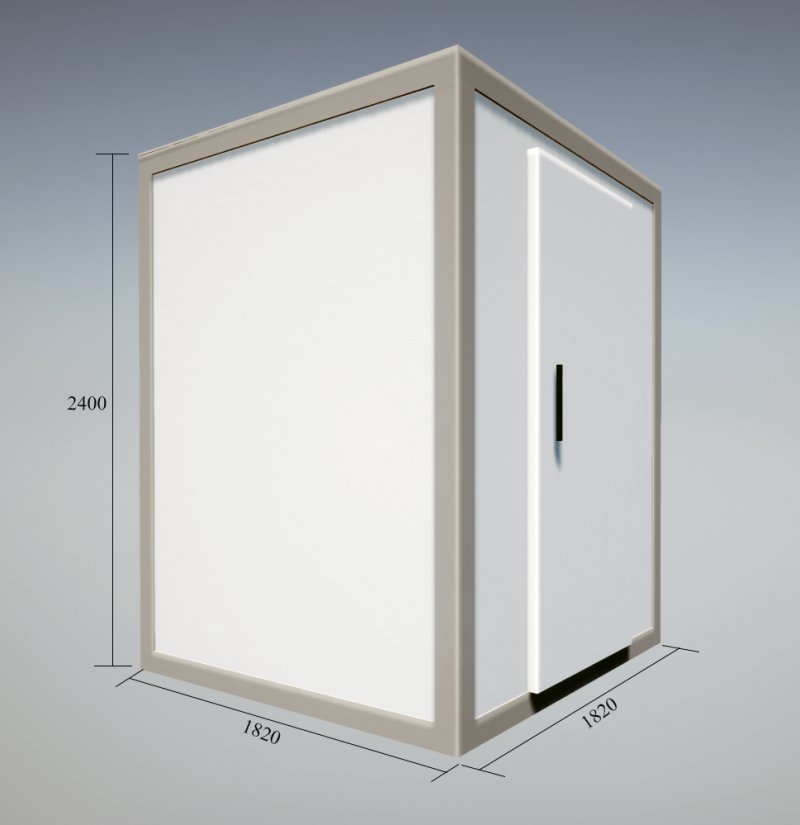

FREEZER 1820 x 1820 x 2400 | Sheffield Africa Kenya
Temperature : -18 to -26 Deg.C
Total Surface Area(sq.m) : 20.7844
Total Volume (Cubic.m) : 7.94976
Running meters : 7.28
Item No : null
Model No : SHEFFIELDFR1
Brand :
Category : FREEZER ROOMS- Superior Insulation
- Temperature Precision
- Energy Efficiency
- Quick Installation
- Customizable Spaces
- Durability and Longevity
- Hygiene and Maintenance
- Panel Specifications - Polyurethane Foam (PUF) Wall and roof 100MM Thick. The cladding material is Pre-painted Galvanized Iron (PPGI), Injected Density 42 Kg/m3
- Floor Type - Epoxy Floor Type with 0.3 mm thick layer with 80MM thick PUF Insulation
- Condensing Unit - AIR COOLED SLIM-ICL04AS, Cooling Capacity- 3743 BTU/Hr (1.1 kW) comes with R404a Refrigerant
- Evaporator - Ceiling Mounted Evaporator, Capacity - 4265 BTU/Hr (1 kW) - Body Size - 30" x 13" x 16" - CMH / Throw- 1560/9
- Control Panel - Standard Control Panel equipped with Microprocessor based controller cum indicator along with required electrical/electronic components
- Insulated Door - Swing Door Type, 100 mm thick Polyurethane Foam panels
- Electrical materials - Refrigeration and Electrical Switch Gear, Electrical connections and materials
- Interconnecting Material - Installation, testing, and commissioning, consumables and steel supports - U-channels, PVC internal Angle Lines (75 X 75 MM), PPGI Flashing (50 X 150 MM)
