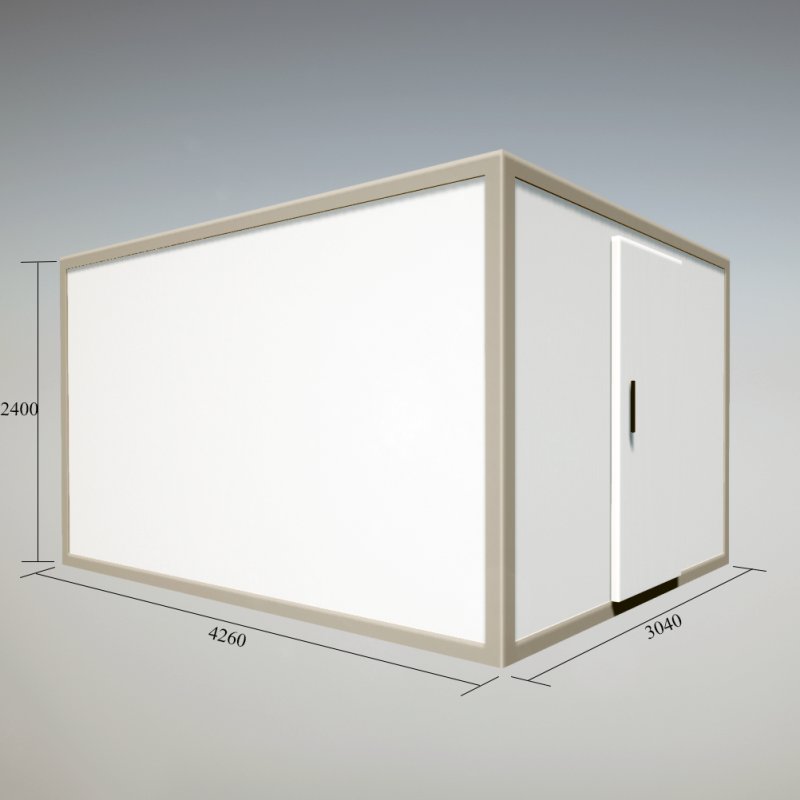

FREEZER 4260 x 3040 x 2400 | Sheffield Africa Kenya
Temperature : -18 to -26 Deg.C
Total Surface Area(sq.m) : 47.9904
Total Volume (Cubic.m) : 31.08096
Running meters : 14.6
Item No : null
Model No : SHEFIELDFR5
Brand :
Category : FREEZER ROOMS- Superior Insulation
- Temperature Precision
- Energy Efficiency
- Quick Installation
- Customizable Spaces
- Durability and Longevity
- Hygiene and Maintenance
- Panel Specifications - Polyurethane Foam (PUF) Wall and roof 100MM Thick. The cladding material is Pre-painted Galvanized Iron (PPGI), Injected Density 42 Kg/m3
- Floor Type - Epoxy Floor Type with 0.3 mm thick layer
- Condensing Unit - AIR COOLED SLIM-ICL09AH, Cooling Capacity- 9315 BTU/Hr (2.73 kW) comes with R404a Refrigerant
- Evaporator - Ceiling Mounted Evaporator, Capacity - HEAT EXCHANGER -A4018303H - Body Size - 58" x 13" x 16" - CMH / Throw- 3120/9
- Control Panel - Standard Control Panel equipped with Microprocessor based controller cum indicator along with required electrical/electronic components
- Insulated Door - Swing Door Type, 80 mm thick Polyurethane Foam panels
- Electrical materials - Refrigeration and Electrical Switch Gear, Electrical connections and materials
- Interconnecting Material - Installation, testing, and commissioning, consumables and steel supports - U-channels, PVC internal Angle Lines (75 X 75 MM), PPGI Flashing (50 X 150 MM)
