SOLID DOOR CHILLER 1 DOOR UNDER COUNTER DR200 S/S | Sheffield Africa Kenya

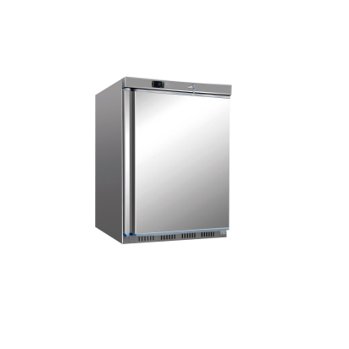

The Blueline DR200 S/S is a refrigerated counter, running at 0 to +10 °C — cold storage built into the work surface itself, so the mise en place for a service sits under the hands using it instead of in a walk-in across the kitchen. At 870 mm high it lines up with the worktops either side. The cabinet measures 600 × 615 × 870 mm. Inside, the usable chamber is 510 × 485 × 620 mm.

Power is a single-phase 230 V / 50 Hz supply, so no three-phase provision is needed. At 46 kg empty two people can position it. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. The compressor is an Embraco / ZEL unit under a Dixell digital thermostat, mainstream parts an engineer can source locally.

140 litre gross capacity at 0 to +10 °C. 600 × 615 × 870 mm external footprint, configuration: Single solid door under-counter design, construction: Commercial-grade stainless steel and type: Under-counter refrigeration unit.
