BULK MILK CHILLER 500 LITRES BMC-500 | Sheffield Africa Kenya
Item No : IMG/REF/00136
Model No : BMC-500
Brand :

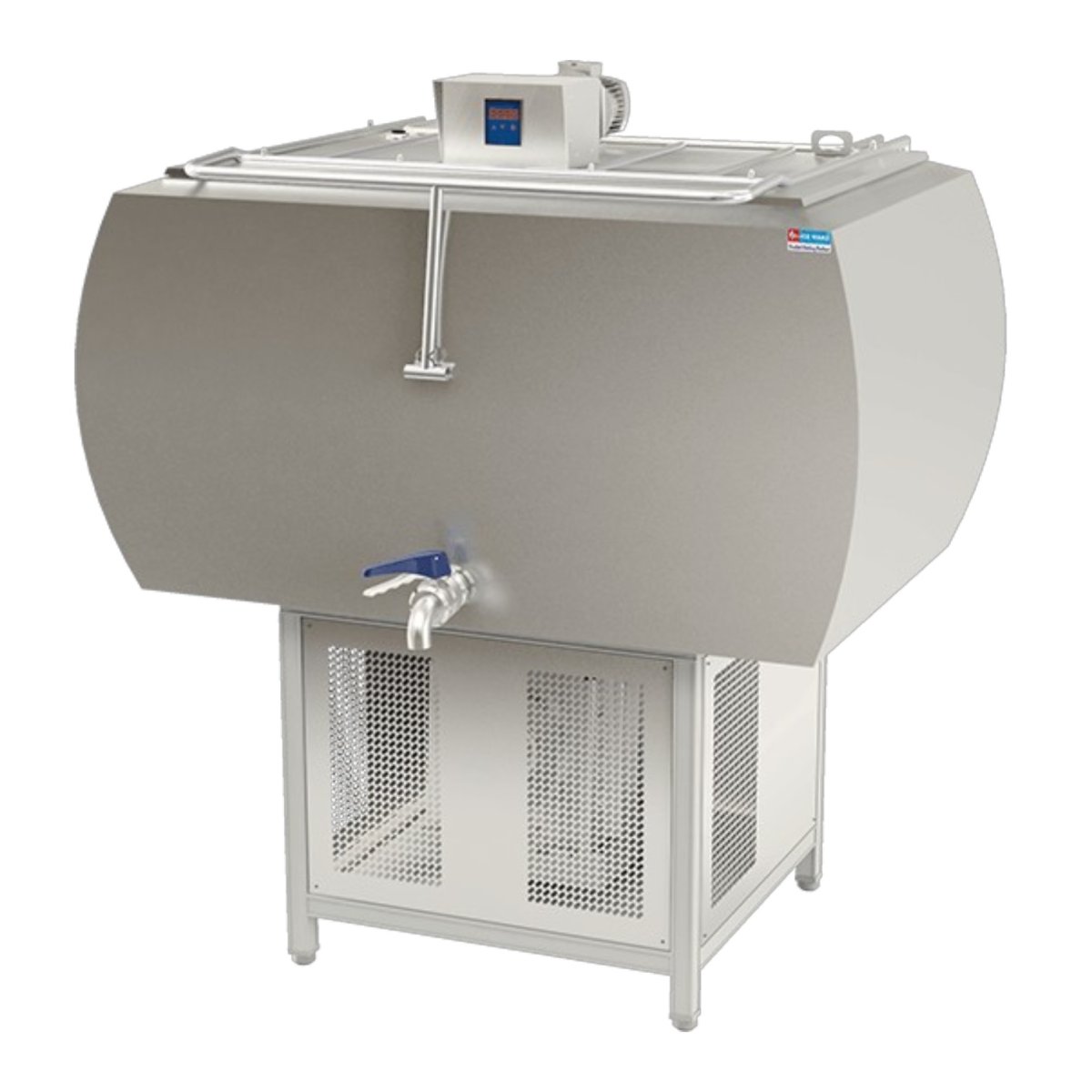

Category : COOLERSThe Ice Make BMC-500 is a 500-litre bulk milk chiller for dairy farms and milk collection points - a horizontal AISI 304 stainless steel tank on a stand, with the air-cooled condensing unit mounted underneath.
Cooling is direct expansion through a dimple-jacket evaporator forming the base and sides of the tank, so refrigerant works straight against the milk-contact surface. A full batch drops from milking temperature to 4 °C in five hours, and the insulation then holds it: lose power and the milk rises no more than 3 °C over twelve hours.
It runs single-phase at 2.7 kW, so no three-phase connection is needed - a real advantage at rural collection points. Give it a dedicated circuit: running current is 13-14 A and compressor inrush is several times that.
500 litre AISI 304 tank, welded, polished and sloped to the drain. Direct-expansion cooling through a dimple-jacket evaporator. 37 to 4 °C in 5 hours, then holds 12 hours unpowered. Timer-controlled agitator - 1 minute in every 15. 230 V single phase - no three-phase supply required. Dip-stick and calibration chart supplied.
| Brand | ICEMAKE |
| Model | BMC-500 (Ice Make series code MTD-500) |
| Type | Bulk milk chiller |
| Tank Capacity | 500 litres |
| Body Type | Horizontal rectangular, 1 lid / door |
| Cooling System | Direct expansion (DX) with dimple-jacket evaporator |
| Storage Temperature | 4 °C |
| Pull-down Time | 5 hours (approx. 37 °C to 4 °C, full tank) |
| Temperature Rise on Power Loss | No more than 3 °C in 12 hours |
| Tank Material | AISI 304 stainless steel, fully welded and polished, sloped to the drain outlet |
| Insulation | 60 - 75 mm CFC-free polyurethane foam, density 38 kg/m³ |
| Agitator | 1 × gear motor, timer controlled - 1 minute every 15 minutes |
| Compressor | Hermetically sealed; air-cooled condensing unit mounted under the tank |
| Maximum Ambient | 45 °C |
| Control Panel | Ice Make IM-BMC - digital temperature display, compressor and agitator control, overload and under-voltage protection |
| Milk Measurement | Dip-stick with calibration chart |
| Power Input | 2.7 kW |
| Power Supply | 230 V / 50 Hz / single phase |
| Dimensions | 1295 × 889 × 1600 mm (L × W × H) |
| Net Weight | 240 kg |
| Dimensions (W x D x H) | 1295 × 889 × 1600 mm |
