OVEN CONVECTION 10 TRAY TECNODOM FEDL10NEMIDVH2O | Sheffield Africa Kenya
Item No : IMG/OVE/00089
Model No : FEDL10NEMIDVH2O
Brand :

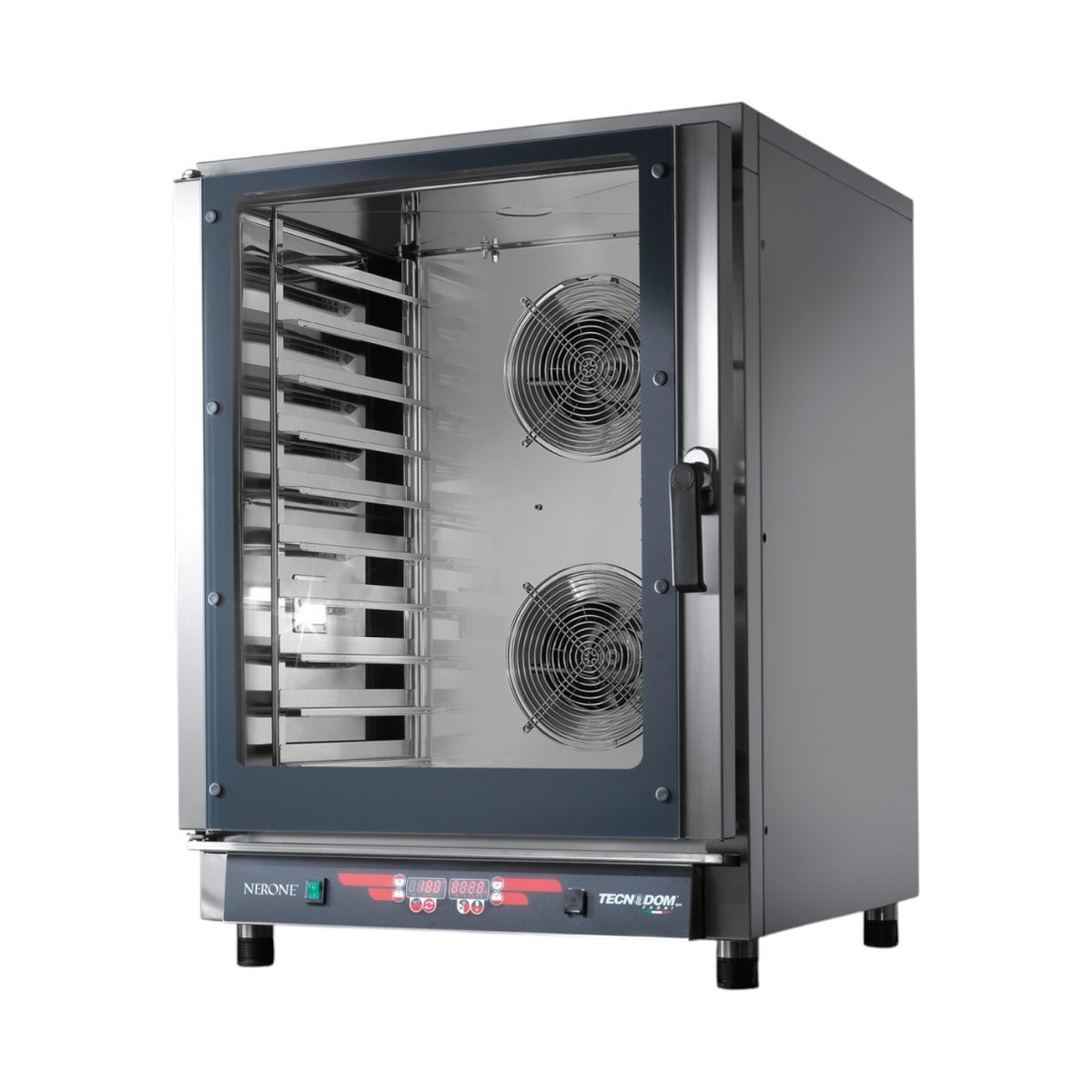

Category : CONVECTION OVENSThe Tecnodom Nerone MID 10 Digital is the largest oven in the MID line and a genuine three-function machine - convection, steam and combination - sized for hotels, institutional kitchens, large restaurants and production bakeries.
Ten 600 × 400 mm or GN 1/1 levels at 80 mm pitch give serious throughput, and reversing fans keep the top and bottom of a full load cooking at the same rate.
The digital panel stores nine customisable programmes, so a recurring menu item is one button rather than a set of dial settings. A core probe is supplied, and Delta T cooking holds a narrow differential between chamber and core for large joints and slow roasts. Installation requires a 400 V three-phase supply plus mains water and a drain.
Key Features
- 10 trays at 600 × 400 mm or GN 1/1, 80 mm apart
- Direct steam injection with adjustable water percentage
- Digital controls with 9 customisable programmes
- Core temperature probe included, plus Delta T cooking
- Reversing fans for even results across a full load
- Requires three-phase 400 V, plumbed water inlet and drain
| Brand | TECNODOM |
| Model | FEDL10NEMIDVH2O (Nerone MID, digital) |
| Tray Capacity | 10 trays or grids |
| Tray Size | 600 × 400 mm or GN 1/1 |
| Distance Between Trays | 80 mm |
| Chamber Dimensions | 680 × 480 × 840 mm (W × D × H) |
| Temperature Range | 50-280 °C |
| Electrical | 380-415 V / 50 Hz / three phase + neutral |
| Power | 12.7 kW |
| Humidification | Direct steam injection, adjustable percentage |
| Water Connection | Required - water inlet and drain |
| Controls | Digital, double display, 9 stored programmes |
| Core Probe | Included, with Delta T cooking |
| Fans | Reversing |
| Protection Rating | IPX3 |
| Optional Accessory | Refractory stone kit |
| Dimensions | 840 × 910 × 1,150 mm (W × D × H) |
| Net Weight | Approximately 125 kg |
| Origin | Tecnodom S.p.A., Italy |
