COUNTER FREEZER 9006 SNACK1100BT | Sheffield Africa Kenya

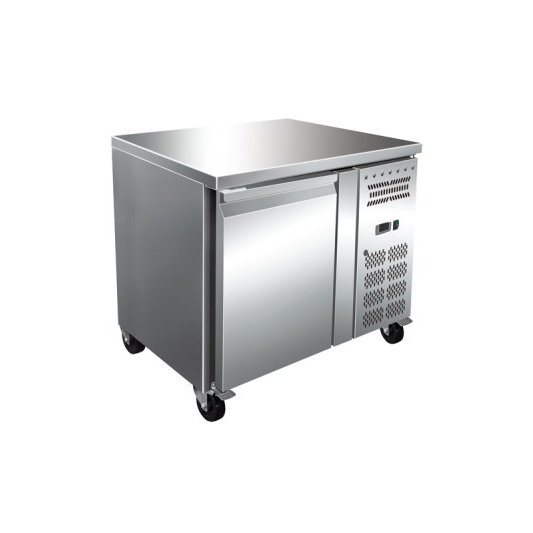

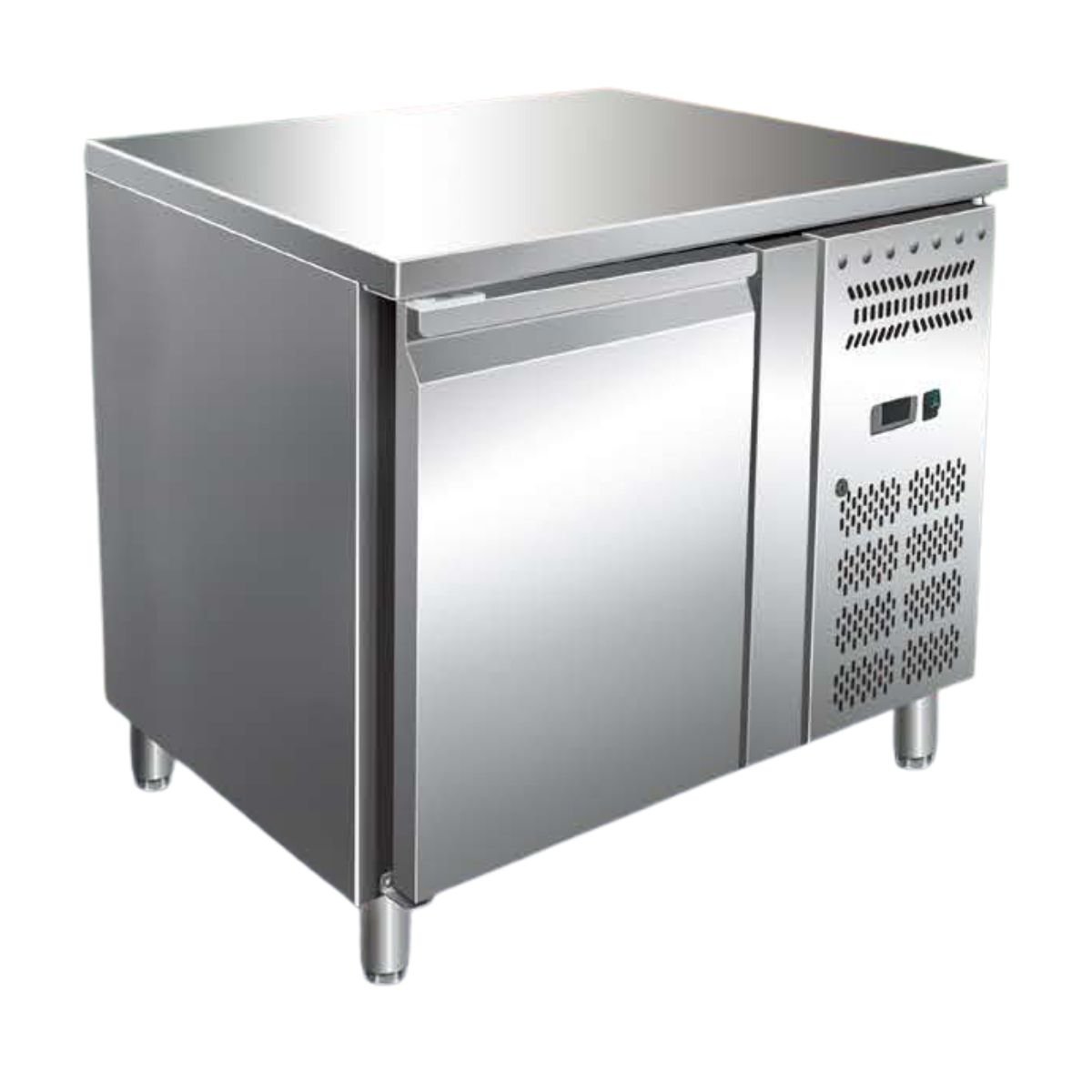

The Blueline SNACK1100BT is a counter freezer, running at -10 to -20 °C — frozen storage built into the work surface, so a portion can be drawn without a trip to the walk-in. At 860 mm high it lines up with the worktops either side. The cabinet measures 900 × 600 × 860 mm. Inside, the usable chamber is 365 × 480 × 589 mm.

Power is a single-phase 230 V / 50 Hz supply, so no three-phase provision is needed. At 52 kg empty two people can position it. It runs on R290, a hydrocarbon refrigerant with a global warming potential of 3; the charge is sealed and small but flammable, so keep the ventilation clearance the installation sheet specifies. The compressor is an Embraco / ZEL unit under a Dixell digital thermostat, mainstream parts an engineer can source locally.

103 litre gross capacity at -10 to -20 °C. 900 × 600 × 860 mm external footprint, Digital thermostat - Dixell, automatic compressor cycle defrost and door with self closing (Not reversable).
