COMBINED SLUICE SINK WITH SINK AND DRAINER – LH | Sheffield Africa Kenya
Model No : DUHS-LH
Brand :

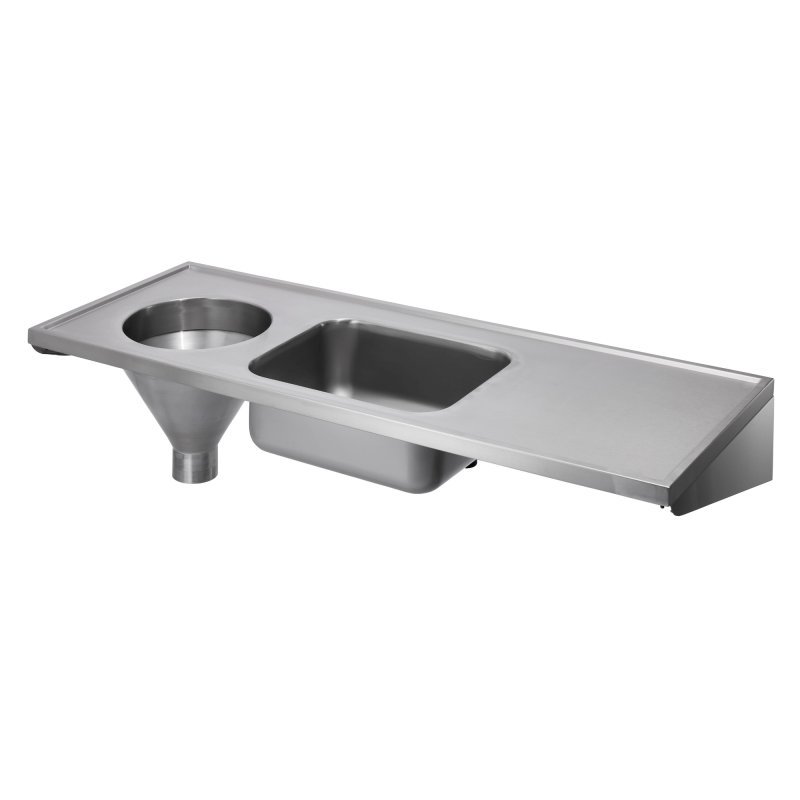

Category : SLUICE SINKS- Product Name: Combined Sluice Sink with Sink and Drainer – LH
- All-in-one stainless steel sluice sink with integrated sink bowl and drainer.
- Left-hand sluice, center sink bowl, and right-hand drainer configuration (RH model available).
- Pressed top reduces welds and joints for easy cleaning and maximum hygiene.
- Anti-drip edge and full flushing rim ensure efficient and sanitary operation.
- Robust construction suitable for clinical, healthcare, and industrial use.
- Material: Grade 304 stainless steel, satin polish finish
- Dimensions: 1600 mm × 600 mm overall
- Configuration: Left-hand sluice, centre sink bowl, right-hand drainer (RH version available)
- Anti-drip edge with turn down on all four sides
- Wall mounting brackets (optional front support legs)
- Flushpipe connection:
- Back entry (70 mm) – standard
- Top entry (75 mm, extra cost, includes stainless steel downpipe)
- Outlet: 110 mm plain spigot (option for white polypropylene P or S trap)
Sink Bowl
- Size: 500 × 400 × 200 mm
- 38 mm unslotted flush grated waste fitting, no overflow
- Supplied without tap holes (optional: 1 or 2 tap holes, Ø22 mm / Ø28 mm / Ø35 mm)
Cistern Options
- Stainless steel manual cistern with operating lever
- Plastic concealed/exposed cistern with flushpipe and operating lever
- Concealed: 505 mm (W) × 312 mm (H) × 150 mm (D)
- Exposed: 455 mm (W) × 318 mm (H) × 155 mm (D)
